  • Liquid Filling Systems

SORM Basic

Meet SORM Basic.

Easy Use, High Performance

Liquid Filling Device

SORM Basic Liquid Filling Machine

In production processes or in areas where liquids must be used in certain proportions, these are liquid flow control devices that deliver the desired amount of liquid precisely.

It ensures volumetric dispensing of low-viscosity fluids such as water at the desired amount.

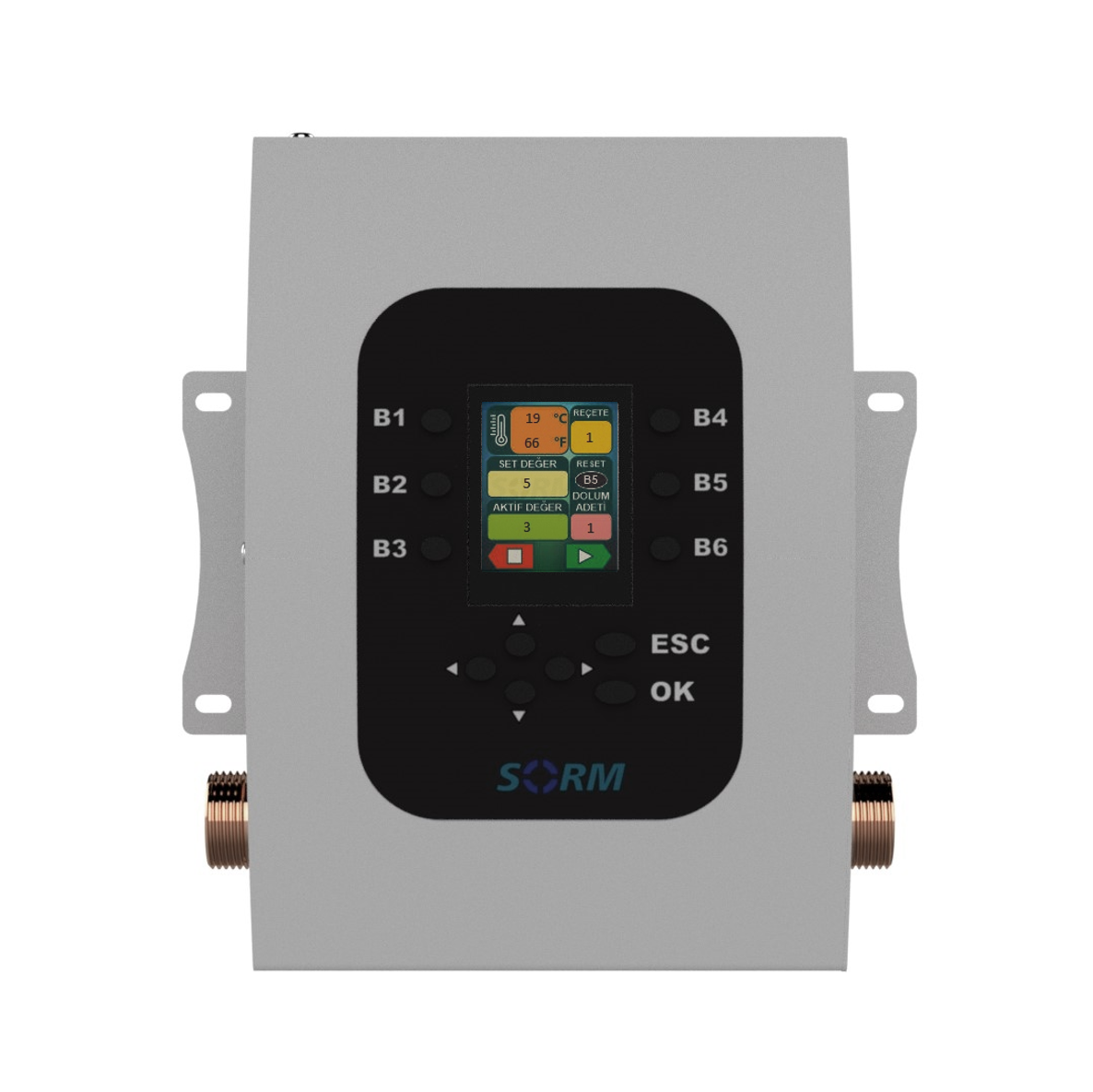

SORM Basic Liquid Filling Machine
SORM Basic

With the 1.8 inch Color TFT LCD Screen on the device;

➔ Desired Volume Value

➔ Active Volume Value

➔ Liquid Temperature Value

➔ Warnings

➔ Usage Help

Can be viewed and monitored instantly.

Standard Features

Universal operating range for the electrical system (85-264VAC/120-373VDC)

Robust, durable compact steel* body design

Corrosion-resistant coated paint

1.8 inch Color TFT LCD Screen

User-friendly, easy-to-understand software interface

Information and warning screens

Manual and controlled use option,

Different volumetric units (milliliter, liter, gallon or cubic meter)

Active temperature measurement (Celsius, Fahrenheit)

Easy direct or mobile connection to the installation

Ability to adjust the liquid inlet direction of the device according to the installation direction

Optional Features

Pump control

External Start-Stop control (Sensor, Pedal, Button, etc.)

Operating together with a system or machine (ability to control hydraulic and pneumatic systems in conveyor belt and liquid filling line applications)

Technical Specifications

Inlet and Outlet Connection: ¾” DN20

Operating Voltage: 85-264VAC/120-373VDC

Minimum Power: 5W Maximum Power: 108W

Maximum Operating Pressure: 16 Bar

Kinematic Viscosity: 38cst

Operating Pressure: (0.5-16 Bar)

Liquid Flow Rate (2-60L/min)

Applications

SORM Basic is a filling machine designed for precise and economical filling of low-viscosity products.

Filling of low-viscosity products
Filling of food and household products
Small batches and custom production
Start-up production lines

Why SORM Basic?

  • Suitable for low-viscosity products

  • Precise filling control

  • AISI 316 food-safe stainless steel body

  • Compact design and easy installation

Do not hesitate to contact us with any questions about our activities. We are happy to answer your questions.
